THOEM

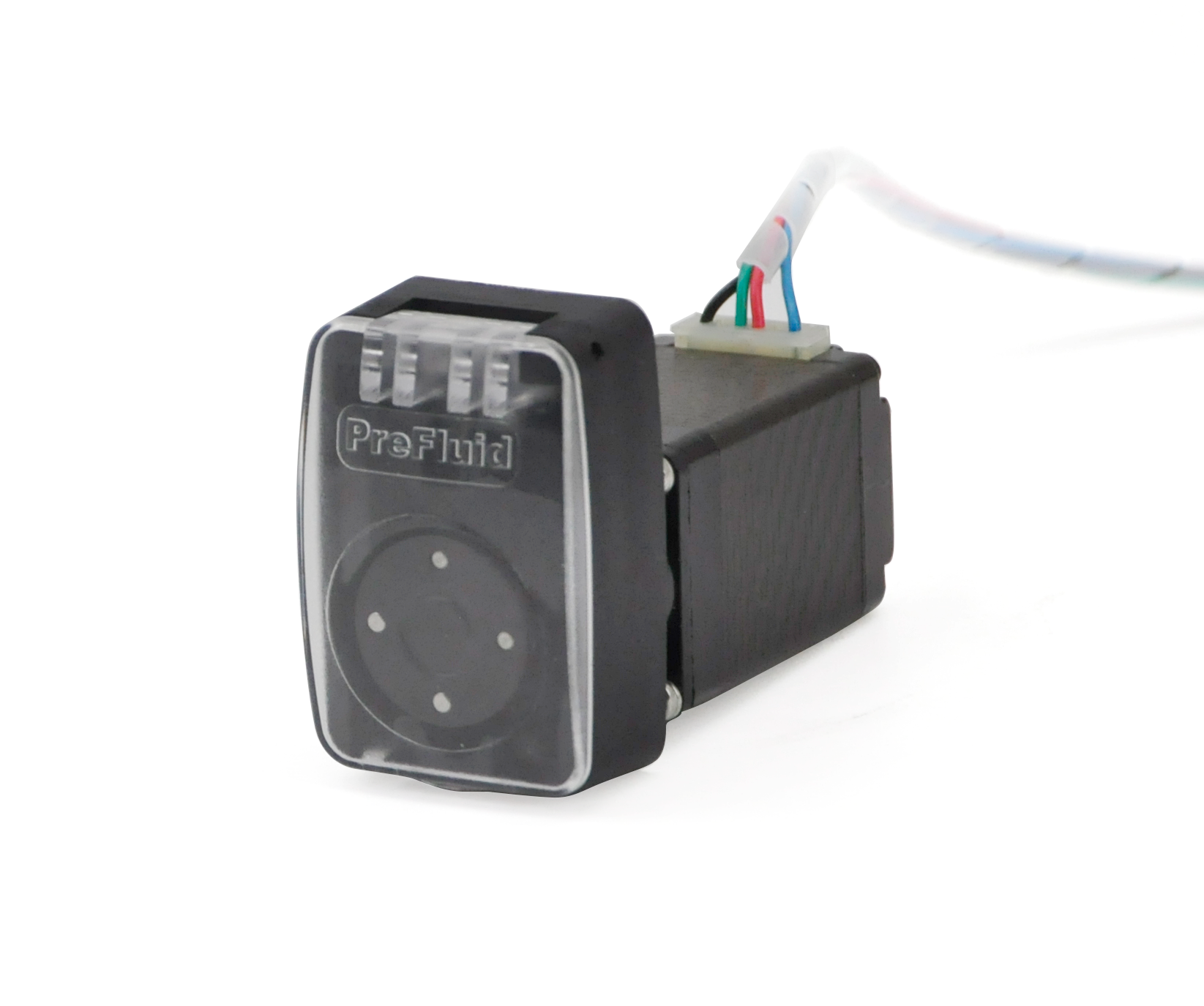

TH25OEM Peristaltic Pump

The TH25 pump head is a newly developed two-rotation bullet-shaped pump head that reduces shear force and extends hose life. The pump cover is made of transparent engineering plastic for easy observation of operation. This pump head is designed for tangential flow filtration (TFF), virus filtration (VF), and high-performance liquid chromatography (HPLC) applications, achieving linear flow rates up to 1.5 bar pressure, with a maximum flow rate of 3300 ml/min. It is compatible with 15#, 24#, 35#, 36#, and 73# hoses.

The TH25 pump head is a newly developed two-rotation bullet-shaped pump head that reduces shear force and extends hose life. The pump cover is made of transparent engineering plastic for easy observation of operation. This pump head is designed for tangential flow filtration (TFF), virus filtration (VF), and high-performance liquid chromatography (HPLC) applications, achieving linear flow rates up to 1.5 bar pressure, with a maximum flow rate of 3300 ml/min. It is compatible with 15#, 24#, 35#, 36#, and 73# hoses.

Specifications
Documents
Videos
Speed ​​resolution 0~220rpm
Motor type Integrated Stepper
MotorNoise Level <50dB
Operating environment Temperature 0~40°C; Relative humidity <80%;
