3 Series

TP311-TH16

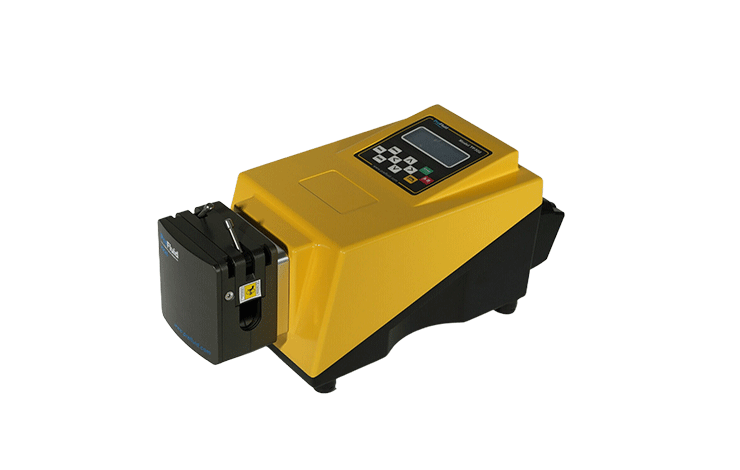

The TP311-TH16 is a high-flow spring-type peristaltic pump from the TP310 series. The driver features a streamlined, molded metal housing that is compact and aesthetically pleasing. A special coating on the housing surface facilitates sterilization in pharmaceutical plants. It is equipped with a maintenance-free DC brushless drive, ensuring quiet operation. A large LCD screen displays various parameters, with selectable Chinese and English menus. It offers both quantitative dispensing and continuous operation modes, providing high flexibility.

INQUIRE NOW

Previous: TP311-TH25

Next: No more data

Specifications

Documents

Videos

Speed resolution	0~220rpm
Speed range	0.1rpm
Motor type	DC brushless servo motor
Noise level	≤65dB (at 30cm in front of the product)
Applicable power supply	100~240VAC 50/60HZ
Power consumption	≤150W
Driver weight	9.4KG
Display method	The LCD screen displays operating parameters and status; Chinese and English menus are selectable.
Operation method	Panel buttons are used to set and adjust parameters, with an audible buzzer indicating the setting.
External control method	The DB15 external control interface uses dry contact signals to control start/stop and steering; analog signal current (4~20mA) and voltage (0~10V) controls speed; and an RS485 interface and Modbus RTU communication protocol control start/stop, steering, and speed.
Protection level	IP54
Operating environment	Temperature 0~40°C; Relative humidity <80%;
